Intelligent Butterfly Shape Tripod Turnstile Gate with 30W/24V DC Brushless Motor and 420mm330mm980mm Dimensions

Brand Name : cxt

Model Number : CXT-SW126

Certification : ce

Place of Origin : SHENZHEN

MOQ : 1

Price : 99-3000 Dollar

Payment Terms : MoneyGram,Western Union

Supply Ability : 200ps

Delivery Time : 20day

Packaging Details : Wooden box

Material : 304 Stainless Steel,thickness is no less than 1.3mm

Power supply : AC220V,AC220V/110V optional,110~240 V(AC),50Hz,AC220±10%

Dimension : 420mm*330mm*980mm,L1200 x W280 x H1000mm,L1200 * W280 * H980mm,1300*300*1000mm,1200*280*980mm

Weight : 140kg/2sets,45kg,45.00Kg

Working environment : Indoor/Outdoor (with a tent over),-10-70 degree,indoor / outdoor,Indoor & Outdaoor

Power voltage : AC220V/110V±10%,50Hz/60Hz,50Hz

Motor : DC Brushless motor,30W/24V,Brusless / Brushed optional

Contact Now

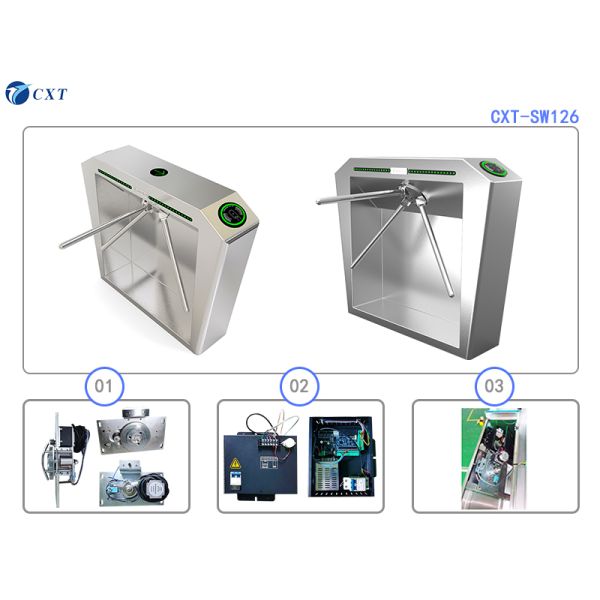

Scenic spot ticketing brushless fully automatic intelligent Butterfly Shape Tripod Turnstile CXT-SW126

Butterfly Shape Tripod Turnstile Core Features:

Combined with brushless motor for a longer lifespan.

ARM control board technology with merits for stronger function and better extensibility.
Modular structure design is simpler and easier to maintain.
Better buffer effect, greatly improve anti-collision ability and prevent human injuries;
With promptly contrarotation will deter the intruder
High cost-effective
Lane width:510mm
Application environment:Indoor/Outdoor
Appearance grade:High/middle/low(optional)
Anti-trailing: Excellent
Anti-collision: Excellent
Pass group:pedestrian-only
High cost-effective
tripod barriers for access control
used as bus turnstile

Slim Tripod Turnstile Package:

Butterfly Shape Tripod Turnstile Function Comparison Table:

Seq.	Item name	Market product	CXT upgraded product
1	Rotation mode	Manual push	Electric power
2	Positioning principle	Optical coupling point	Motor self-position
3	Positioning mode	Positioning arm	Timely re-push, unlock
4	Transmission mode	Magnetic valve	Brush-less motor
5	Control Technology	SCM	ARM
6	Arm lock mode	Manual	Auto
7	Buffering	None	has
8	Anti-reverse	None	has
9	Noise	Big	none
10	Mechanical wear	Big	none
11	unauthorized mechanical alarm (infrared)	None	has
12	Passing indicator Data setting	None	has
13	Life-span	1-3Year	Above 6 year
14	Flow capacity	25-30per./min.	30-45per./min.
15	Normal open when power off	has	has
16	Memory	has	has
17	Fire protection input	has	has
18	Feedback signal output	has	has

Intelligent Butterfly Shape Tripod Turnstile Gate with 30W/24V DC Brushless Motor and 420mm*330mm*980mm Dimensions
